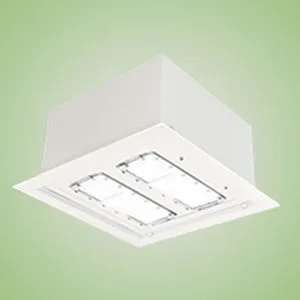

Techlight LRCL Fusion Series Square Recessed LED Canopy
Application
The high performance luminaire is designed for recessed applications where long life, low maintenance, and consistent color rendering is required. Areas with limited accessibility due to fixture location or where heavy pedestrian traffic makes maintenance difficult are ideal applications such as retail canopies.
Construction
The heavy duty housing is constructed of extruded aluminum. The optical assemblies are sealed in place using a silicone gasket for weather tight protection. Modular LED bricks wired in parallel for ease of maintenance. ETL listed for wet locations (IP64). Additional IP66 rating available upon request.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
Made with a state of the art UV stabilized acrylic high performance refractive optical assemblies that use high transmicity materials to achieve precise photometric distributions. Available in Type II, III, IV, IV Automotive, V Medium and V Wide beam configurations.
Electrical System
Available in up to a 2 brick LED system in 5000K Cool White ( /- 500K) or 4100K Neutral White color temperatures propagated with Philips Lumileds LUXEON® Rebel LEDs. Available with 90-300V 50/60 Hz Class II power supply. LEDs rated up to 78,000 (B50 L70) hours for 850 mA operation and 103,000 (B50 L70) for 630 mA operation at 25°C ambient temperature. 480V input option available. Optional 0-10V dimming. Built-in surge protection up to 10 kV. Thermal protection is provided in the form of a dimming thermal foldback until fixture reverts back to the optimal operating temperature. Built-in Active PFC Function >95%/Full load. LED Power Supply conforms to UL1310 Class 2 and UL8750 standards and is IP67 rated for wet locations.
Mounting
The fixture is recess mounted using the trim ring provided for rough-in.
Listings
LED Power Supply listed for wet locations (IP67). LED bricks ETL listed for wet locations (IP64). Meets US and Canadian safety standards. -40°C to 50°C ambient operation.
